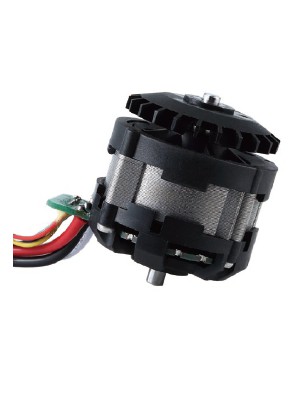

BLDC4244Bürstenloser Motor /圓型鐵殼
用途： Elektrowerkzeuge
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

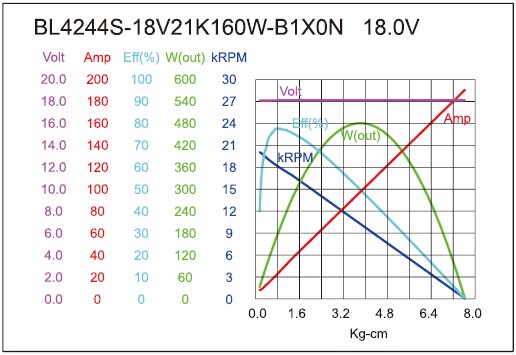

| BL4244S-18V21K160W-B1X0N | 12.0-24.0 | 18.0V CONSTANT | 20500 | 1.74 | 17986 | 12.55 | 906 | 88.82 | 167.35 | 80 | 95.54 | 7645 | 749.51 |

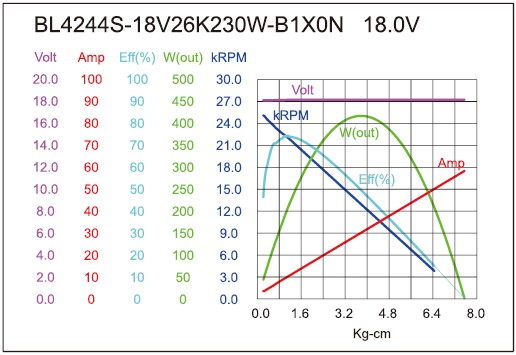

| BL4244S-18V26K230W-B1X0N | 12.0-24.0 | 18.0V CONSTANT | 26200 | 3.30 | 22371 | 18.75 | 1028 | 100.782 | 236.17 | 75 | 117.33 | 7570 | 742.16 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
