987Bürstenmotor /圓型鐵殼
用途： Elektrowerkzeuge 、Elektrische Tür
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

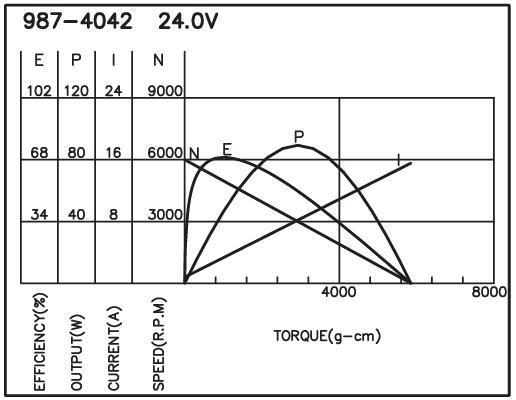

| 987-4042-R | 12.0-36.0 | 24.0V CONSTANT | 6000 | 0.80 | 5000 | 2.46 | 803 | 78.73 | 41.23 | 69.53 | 15.55 | 5855 | 574 |

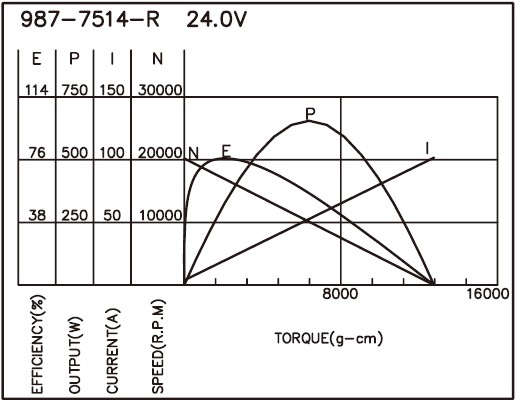

| 987-7514-R | 6.0-26.0 | 24.0V CONSTANT | 20000 | 3.80 | 17036 | 15.18 | 1558 | 152.75 | 272.58 | 76.87 | 101.63 | 12754 | 1250 |

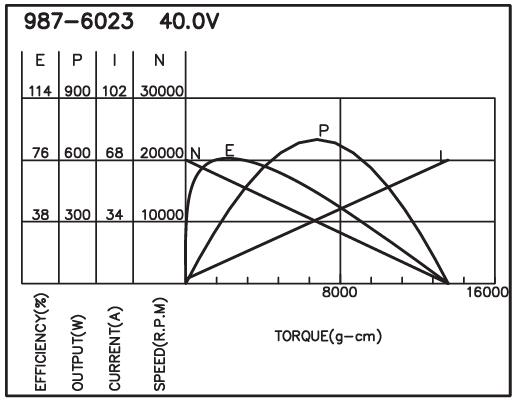

| 987-6023-R | 12.0-40.0 | 40.0V CONSTANT | 20000 | 2.40 | 17513 | 10.43 | 1760 | 172.55 | 316.54 | 77.07 | 67.77 | 13590 | 1332 |

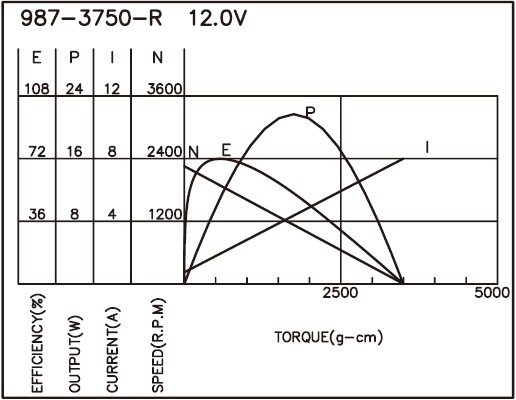

| 987-3750-R | 12.0-36.0 | 12.0V CONSTANT | 2400 | 0.74 | 2076 | 1.26 | 503 | 49.31 | 10.72 | 72.28 | 7.52 | 3496 | 343 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
