K5FN-IEBürstenmotor /圓型鐵殼
用途： Elektrowerkzeuge
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

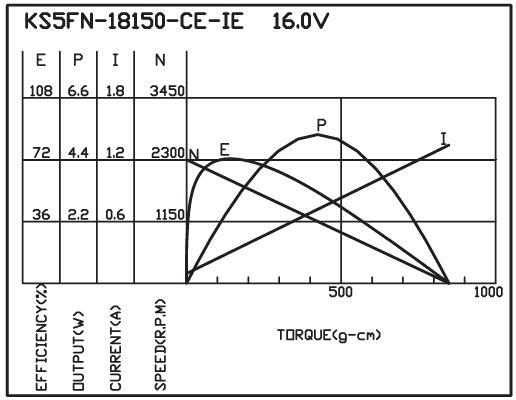

| KS5FN-18150-CE-IE | 12.0-36.0 | 16.0V CONSTANT | 2300 | 0.09 | 2067 | 0.16 | 81 | 7.94 | 1.71 | 72 | 1.34 | 849 | 83.24 |
| KP5BFN-22110-CE-IE | 12.0-36.0 | 15.0V CONSTANT | 2900 | 0.09 | 2483 | 0.39 | 151 | 14.80 | 3.85 | 68 | 2.38 | 1090 | 106.86 |

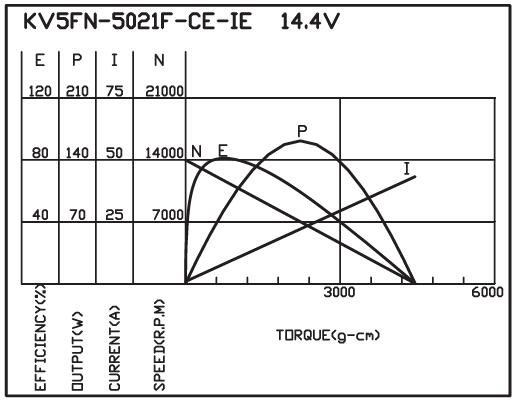

| KV5FN-5021F-CE-IE | 12.0-18.0 | 14.4V CONSTANT | 14000 | 0.83 | 12077 | 6.13 | 562 | 55.10 | 69.70 | 81 | 43.23 | 4458 | 437.06 |

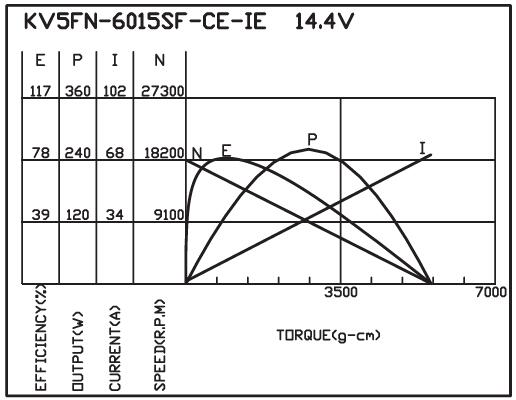

| KV5FN-6015SF-CE-IE | 12.0-18.0 | 14.4V CONSTANT | 18200 | 1.26 | 16129 | 9.82 | 655 | 64.22 | 108.49 | 79 | 70.81 | 5548 | 543.92 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
