K3SFNBürstenmotor /圓型鐵殼
用途： Elektrowerkzeuge 、lektrische Massagegeräte 、Massagegerät
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

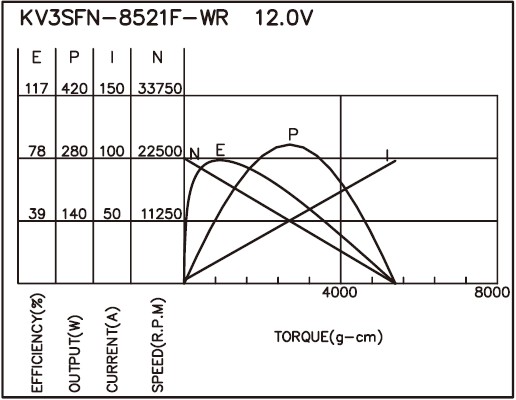

| KV3SFN-8521F-WR | 6.0-12.0 | 12.0V CONSTANT | 22500 | 2.70 | 19048 | 18.33 | 853 | 83.63 | 167 | 77 | 98.00 | 5394 | 528.82 |
| KV3SFN-7527F-WR | 6.0-18.0 | 18.0V CONSTANT | 25000 | 2.10 | 21692 | 13.16 | 773 | 75.78 | 172 | 74 | 87.59 | 5958 | 584.12 |

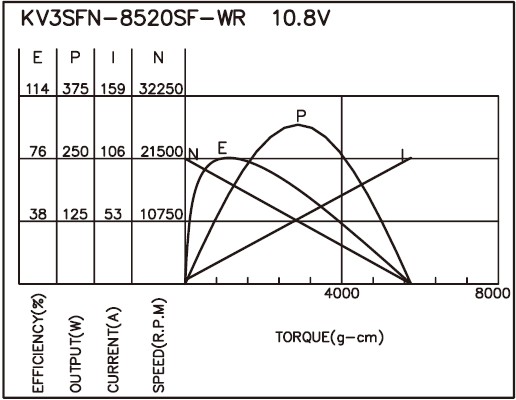

| KV3SFN-8520SF-WR | 6.0-12.0 | 10.8V CONSTANT | 21500 | 3.20 | 17091 | 22.67 | 1013 | 99.31 | 178 | 76 | 106.54 | 5768 | 565.49 |

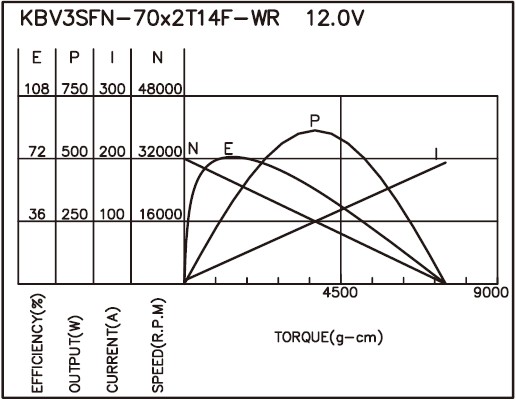

| KBV3SFN-70x2T14F-WR | 6.0-12.0 | 12.0V CONSTANT | 32000 | 5.40 | 24675 | 38.19 | 1236 | 121.18 | 313 | 72 | 193.64 | 7509 | 736.18 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
