H3SFNBürstenmotor /圓型鐵殼
用途： Elektrowerkzeuge 、Wasserstrahlpumpe
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| HD3SFN-6035-R | 6.0-12.0 | 12.0V CONSTANT | 20500 | 1.00 | 17200 | 8.25 | 380 | 37.25 | 67.17 | 68 | 56.32 | 2920 | 286.27 |

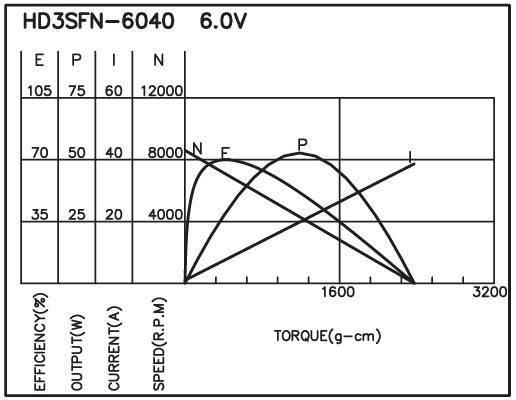

| HD3SFN-6040-R | 6.0-12.0 | 6.0V CONSTANT | 8600 | 1.00 | 7300 | 5.90 | 326 | 31.96 | 24.82 | 70 | 38.69 | 2375 | 232.84 |

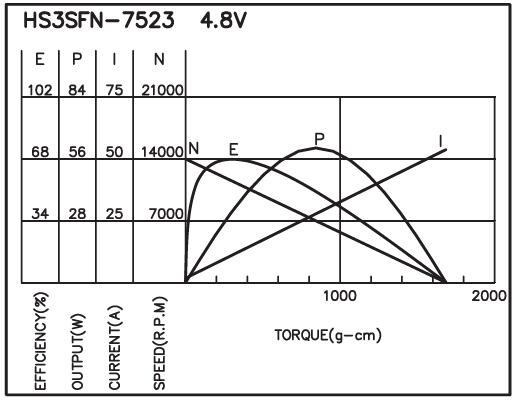

| HS3SFN-7523-R | 3.6-6.0 | 4.8V CONSTANT | 14000 | 1.80 | 11600 | 9.10 | 244 | 23.92 | 29.34 | 68 | 53.75 | 1685 | 165.20 |

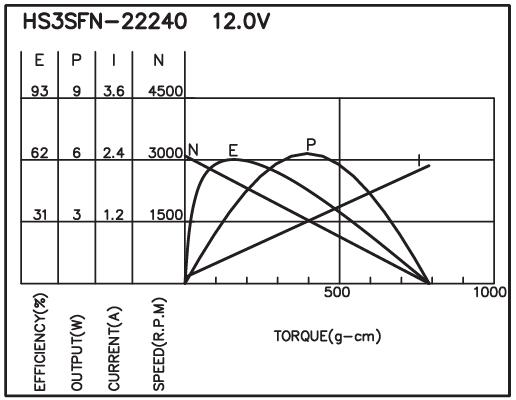

| HS3SFN-22240-R | 6.0-24.0 | 12.0V CONSTANT | 3100 | 0.12 | 2600 | 0.44 | 125 | 12.25 | 3.34 | 62 | 2.29 | 790 | 77.45 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
