L5NBürstenmotor /圓型鐵殼
用途： Haartrockner 、Staubsauger
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

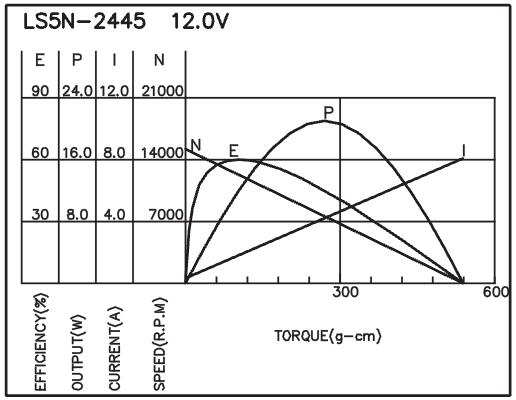

| LS5N-2445-R | 6.0-12.0 | 12.0V CONSTANT | 15200 | 0.33 | 12600 | 1.63 | 90 | 8.82 | 11.75 | 60 | 8.09 | 539 | 52.84 |

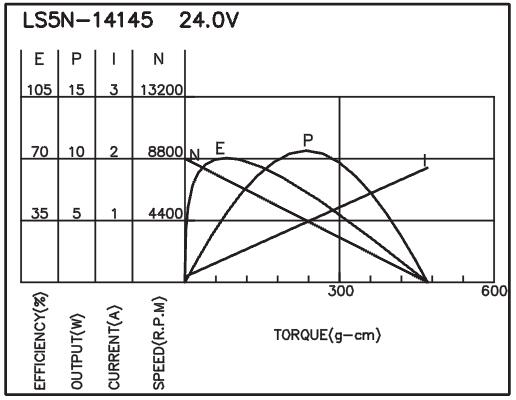

| LS5N-14145-R | 12.0-24.0 | 24.0V CONSTANT | 8800 | 0.09 | 7500 | 0.32 | 65 | 6.37 | 5.06 | 70 | 1.85 | 471 | 46.18 |

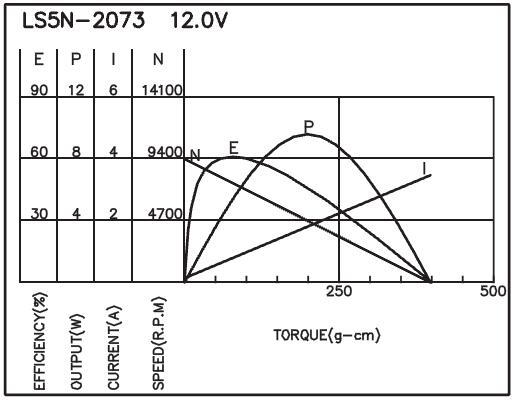

| LS5N-2073-R | 6.0-18.0 | 12.0V CONSTANT | 9000 | 0.26 | 7870 | 0.69 | 69 | 6.76 | 5.58 | 71 | 4.02 | 487 | 47.70 |

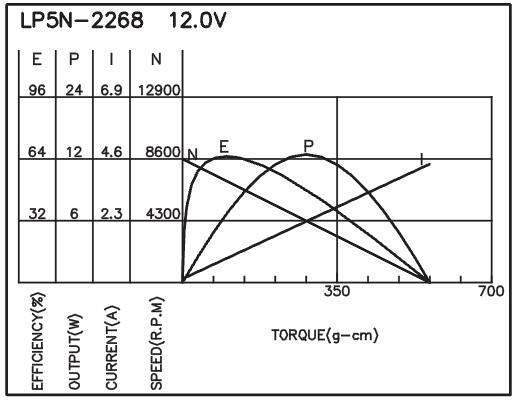

| LP5N-2268-R | 6.0-18.0 | 12.0V CONSTANT | 8600 | 0.14 | 7100 | 0.89 | 93 | 9.11 | 6.87 | 65 | 4.41 | 560 | 54.90 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
