BLDC3657Bürstenloser Motor /圓型鐵殼
用途： Pumpen 、Wasserstrahlpumpe
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

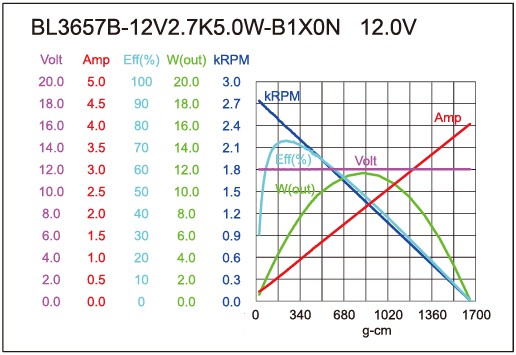

| BL3657B-12V2.7K5.0W-B1X0N | 10.0-30.0 | 12.0V CONSTANT | 2700 | 0.15 | 2408 | 0.65 | 217.60 | 21.33 | 5.38 | 74 | 4.05 | 1662.2 | 162.96 |

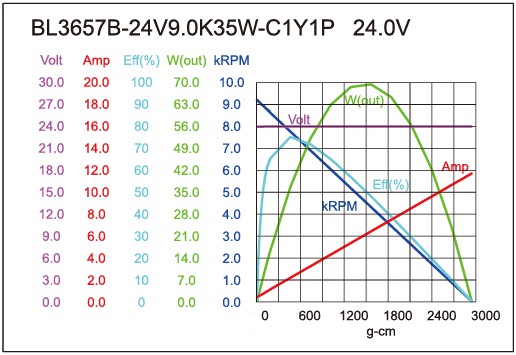

| BL3657B-24V9.0K35W-C1Y1P | 10.0-30.0 | 24.0V CONSTANT | 9000 | 0.35 | 7786 | 2.16 | 458.9 | 44.99 | 36.69 | 76 | 11.78 | 22952.1 | 289.42 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
