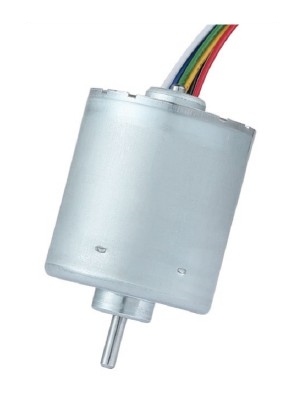

BLDC3640Bürstenloser Motor /圓型鐵殼
用途： Pumpen
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

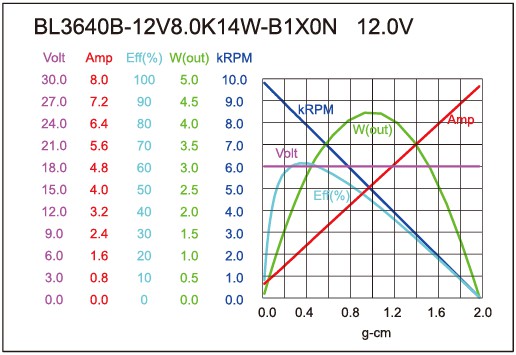

| BL3640B-12V8.0K14W-B1X0N | 10.0-30.0 | 12.0V CONSTANT | 8000 | 0.42 | 6596 | 2.05 | 212 | 20.78 | 14.36 | 62 | 9.69 | 1287 | 126.18 |
| BL3640B-12V8.0K14W-B1X0N | 10.0-30.0 | 24.0V CONSTANT | 9000 | 0.17 | 7675 | 1.38 | 295 | 28.92 | 23.25 | 74 | 7.37 | 1859 | 182.25 |

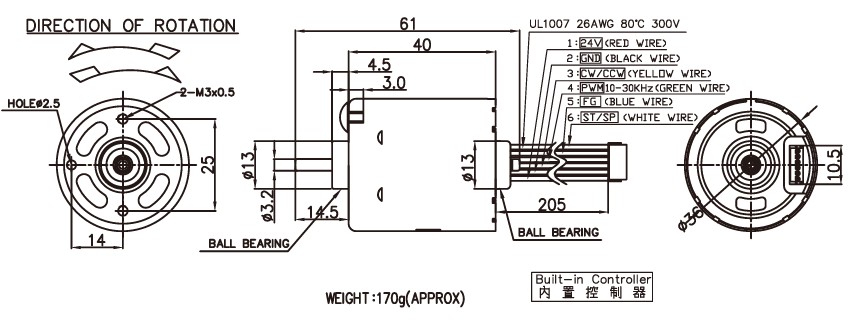

馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
