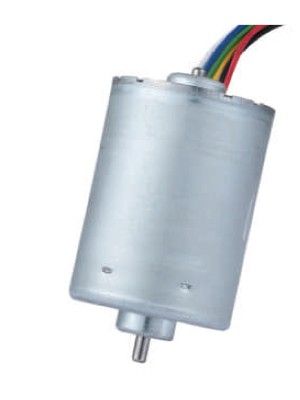

BLDC3649Bürstenloser Motor /圓型鐵殼
用途： Pumpen
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

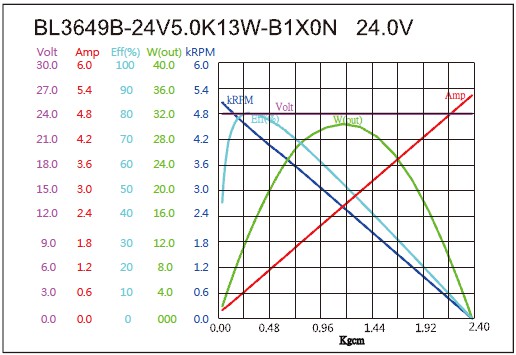

| BL3649B-24V5.0K13W-B1X0N | 10.0-30.0 | 24.0V CONSTANT | 5000 | 0.16 | 4484 | 0.72 | 286 | 28.04 | 13.17 | 81 | 5.23 | 2379 | 232.24 |

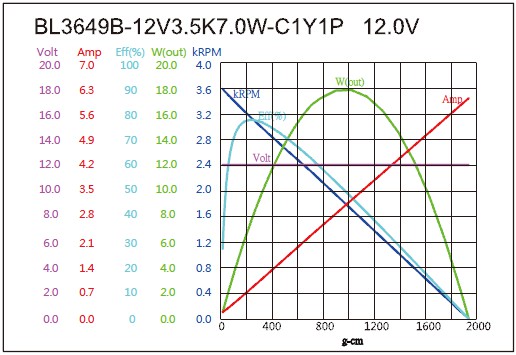

| BL3649B-12V3.5K7.0W-C1Y1P | 10.0-30.0 | 12.0V CONSTANT | 3500 | 0.16 | 3135 | 0.85 | 242 | 23.73 | 7.79 | 78 | 6.04 | 1936 | 189.80 |

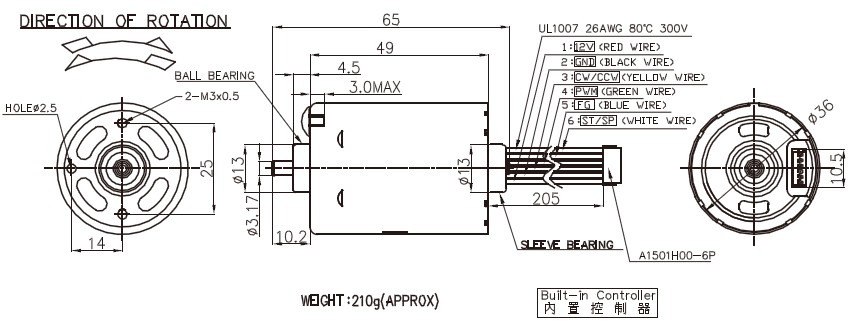

馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
