BLDC4266Bürstenloser Motor /圓型鐵殼
用途： Wasserpumpen
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

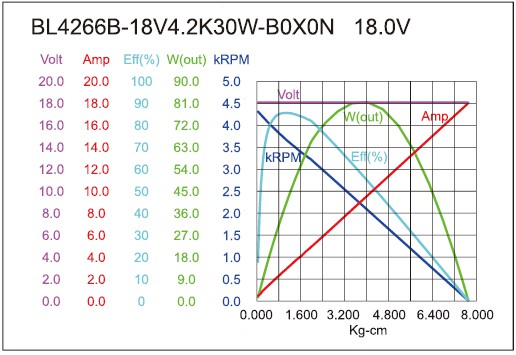

| BL4266B-18V4.2K30W-B0X0N | 10.0-26.0 | 18.0V CONSTANT | 4300 | 0.31 | 3648 | 3.03 | 1128 | 110.59 | 42.26 | 86 | 18.08 | 7727 | 757.55 |
| BL4266B-18V4.2K30W-B0X0N | 10.0-26.0 | 24.0V CONSTANT | 5200 | 0.39 | 4570 | 2.11 | 747 | 73.24 | 35.06 | 76 | 13.42 | 6115 | 559.51 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
