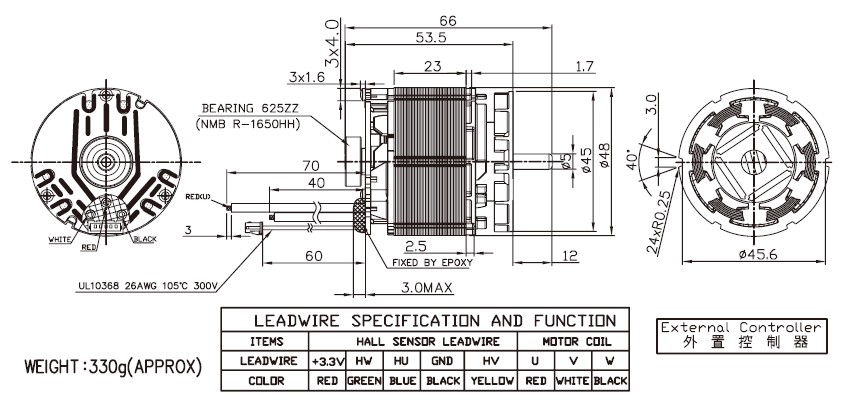

BLDC4823Bürstenloser Motor /圓型鐵殼

用途: Elektrowerkzeuge



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
BL48F23S-14.4V24K400W-B1X0N 14.4-21.6V 14.4V CONSTANT 24000 7.80 20243 41.37 2010 197.06 417.44 72 218.85 1291 126.57
BL48F23S-14.4V24K400W-B1X0N 14.4-21.6V 18.0V CONSTANT 23000 4.70 20450 33.50 2160 211.76 453.84 76 210.75 1575 154.41
馬達的出軸長度及性能參數,EMC 對策可依客人要求做調整,詳情可詢問相關業務人員。
