J5Bürstenmotor /圓型鐵殼

用途: Pumpen 、Haartrockner 、elektrische Haarschneidemaschinen



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE
NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT EFF CURRENT TORQUE
rpm A rpm A g-cm mN-m W % A g-cm mN-m
JD5-2655-R 6.0-24.0 12.0V CONSTANT 7200 0.15 5900 0.87 123 12.11 7.50 73 4.81 798 78.25
JD5-3723-R 6.0-12.0 6.0V CONSTANT 9000 0.45 7500 2.46 136 13.33 10.64 72 14.97 954 93.53
JD5-3038-R 6.0-24.0 9.0V CONSTANT 7700 0.28 6623 1.33 126 12.35 8.60 73 8.17 933 91.47
JD5-18110-R 12.0-24.0 24.0V CONSTANT 7200 0.09 6262 0.41 112 10.98 7.20 74 2.83 898 88.04
馬達的出軸長度及性能參數,EMC 對策可依客人要求做調整,詳情可詢問相關業務人員。

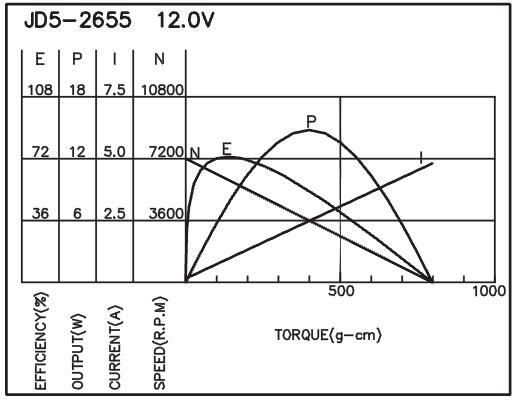

  • torque_151487506978.jpg
  • torque_151487506993.jpg

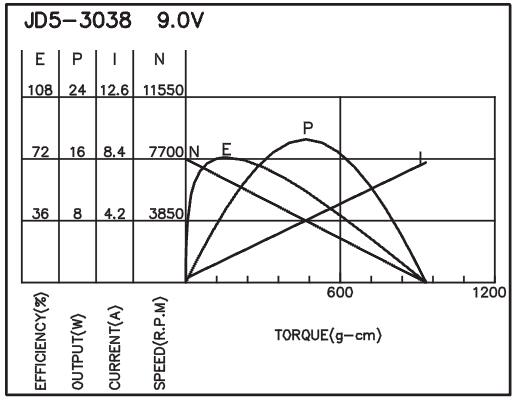

  • torque_151487506962.jpg

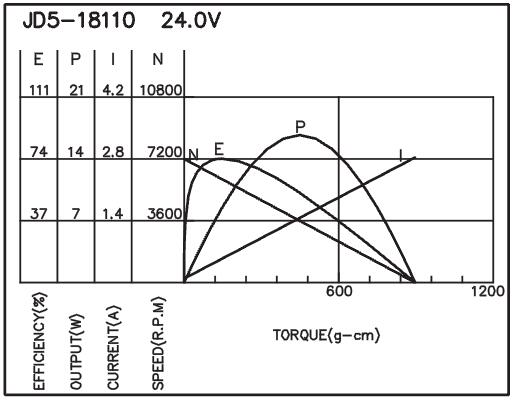

  • torque_151487506973.jpg
