RK-663Bürstenmotor /圓型鐵殼
用途： Elektrowerkzeuge 、uftpumpen für Kraftfahrzeuge 、Gartengeräte
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||

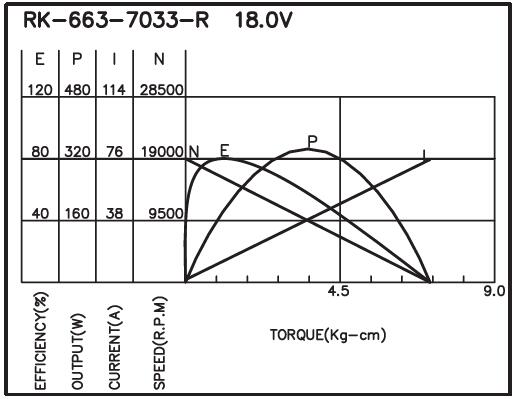

| RK-663-7033-R | 8.0-24.0 | 18.0V CONSTANT | 19000 | 1.60 | 17271 | 9.29 | 749 | 73.43 | 132.85 | 80 | 75.53 | 7120 | 698 |

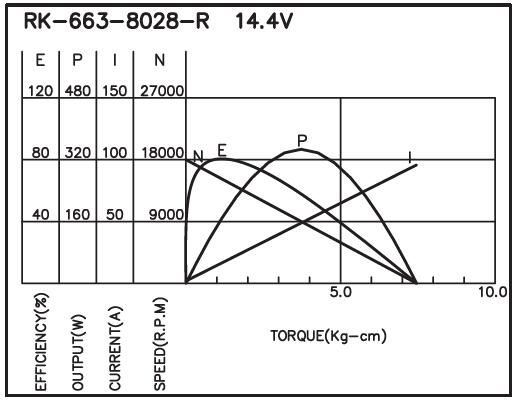

| RK-663-8028-R | 6.0-20.0 | 14.4V CONSTANT | 18000 | 2.05 | 15699 | 11.84 | 849 | 83.24 | 136.88 | 81 | 95.79 | 7460 | 731 |
| RK-663-9019-R | 4.0-14.0 | 12.0V CONSTANT | 21600 | 3.00 | 18832 | 17.75 | 845 | 82.84 | 163.42 | 77 | 122.23 | 7040 | 690 |

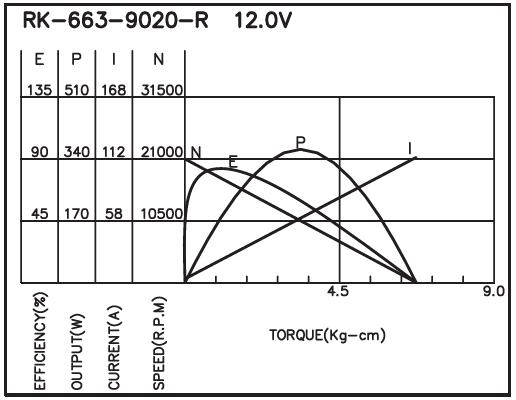

| RK-663-9020-R | 4.0-14.0 | 12.0V CONSTANT | 21000 | 2.50 | 18553 | 14.74 | 745 | 73.04 | 141.95 | 83 | 113.35 | 6730 | 660 |
馬達的出軸長度及性能參數，EMC 對策可依客人要求做調整，詳情可詢問相關業務人員。
